Viavi JDSU T-BERD 6000 OTDR with 8126 LR Module Base Compact Network Test Platform

JDSU T-BERD 6000 OTDR with 8126 LR Module – Powers On – Bad Battery

Used JDSU T-BERD 6000 compact optical test platform with an 8126 LR singlemode OTDR module installed. Unit powers on from AC, touchscreen works, and OTDR traces can be taken. The internal battery is bad and needs to be replaced. Plan on running it from the AC adapter until a new battery is installed.

What you get

• 1 x JDSU T-BERD 6000 mainframe
• 1 x 8126 LR OTDR module installed

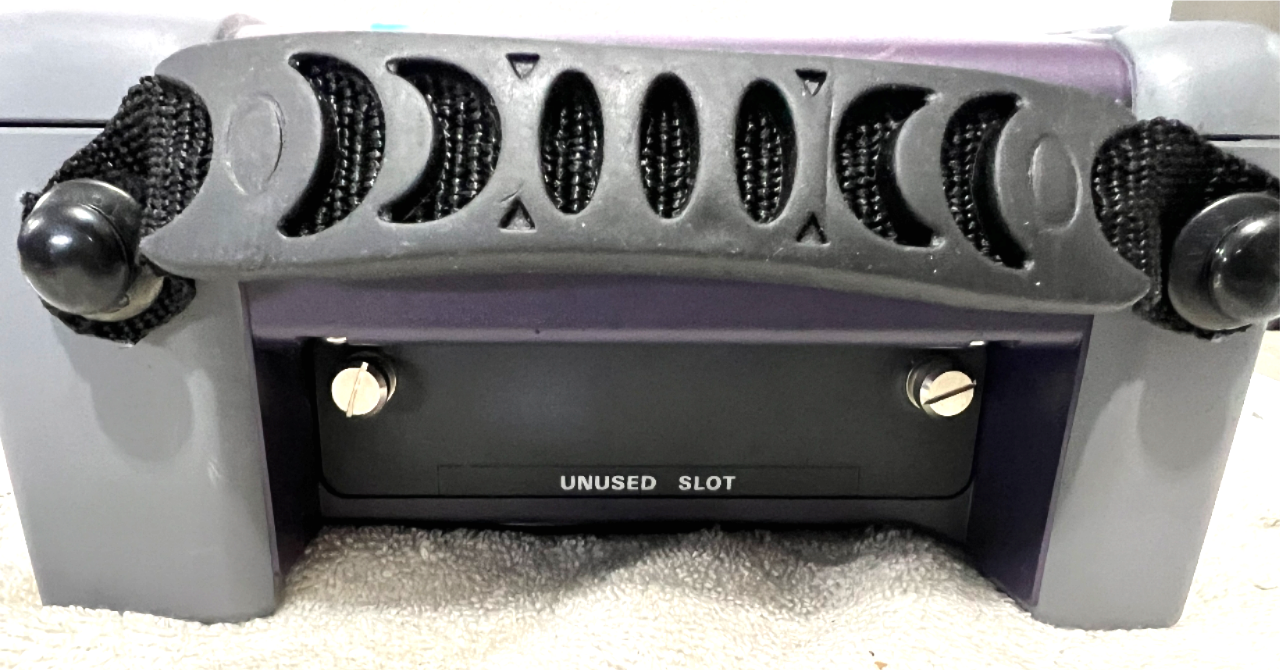

• Side handle / strap as shown

Will come with AC adapter. This instrument will NOT include: case, launch cable, extra connectors, power meter, VFL, or talkset. Photos are of the actual unit.

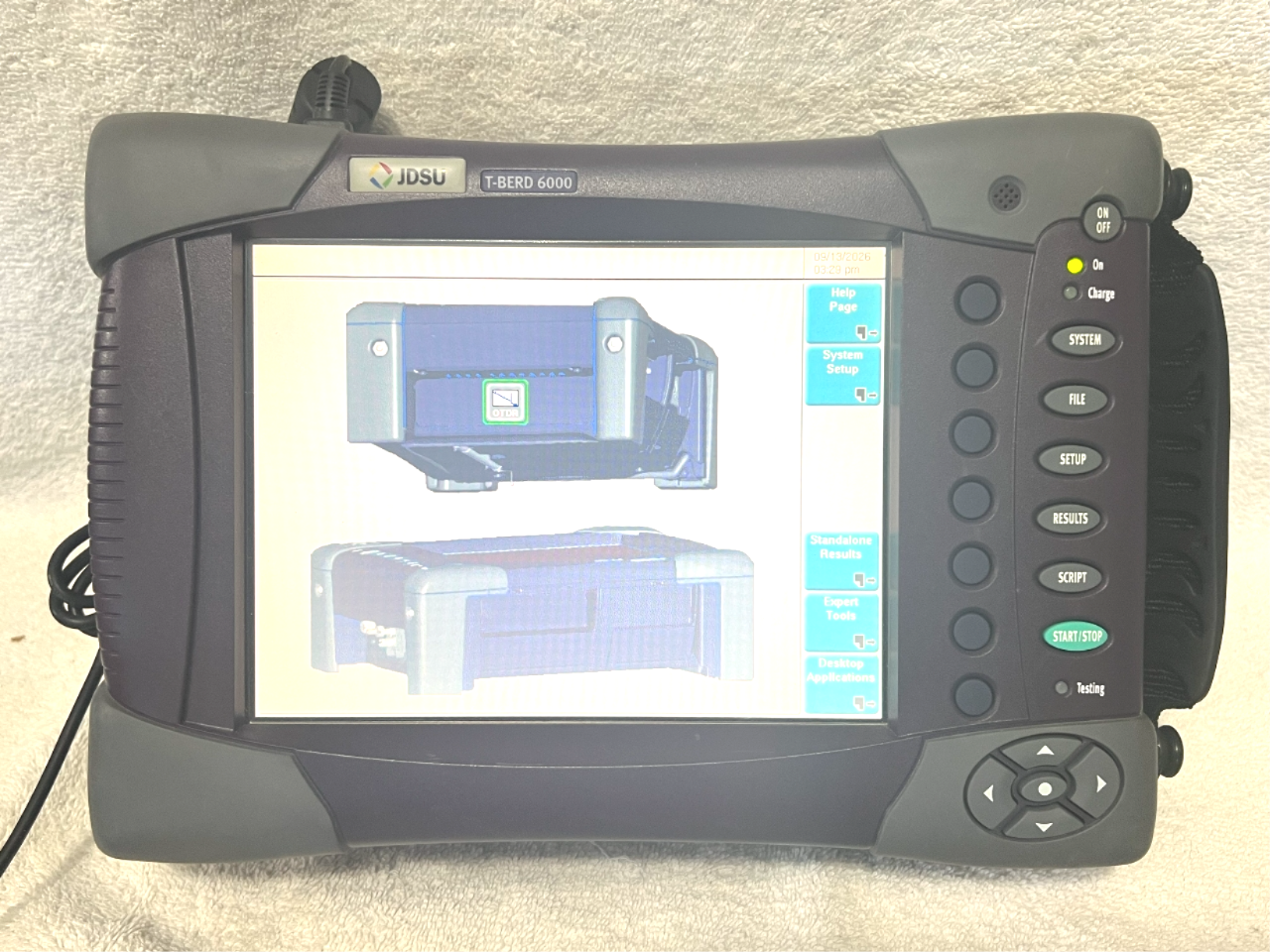

Condition Used field instrument. Powers on and boots to the home screen. Touchscreen is detected and working. Sample OTDR trace shown on screen. Expected wear:

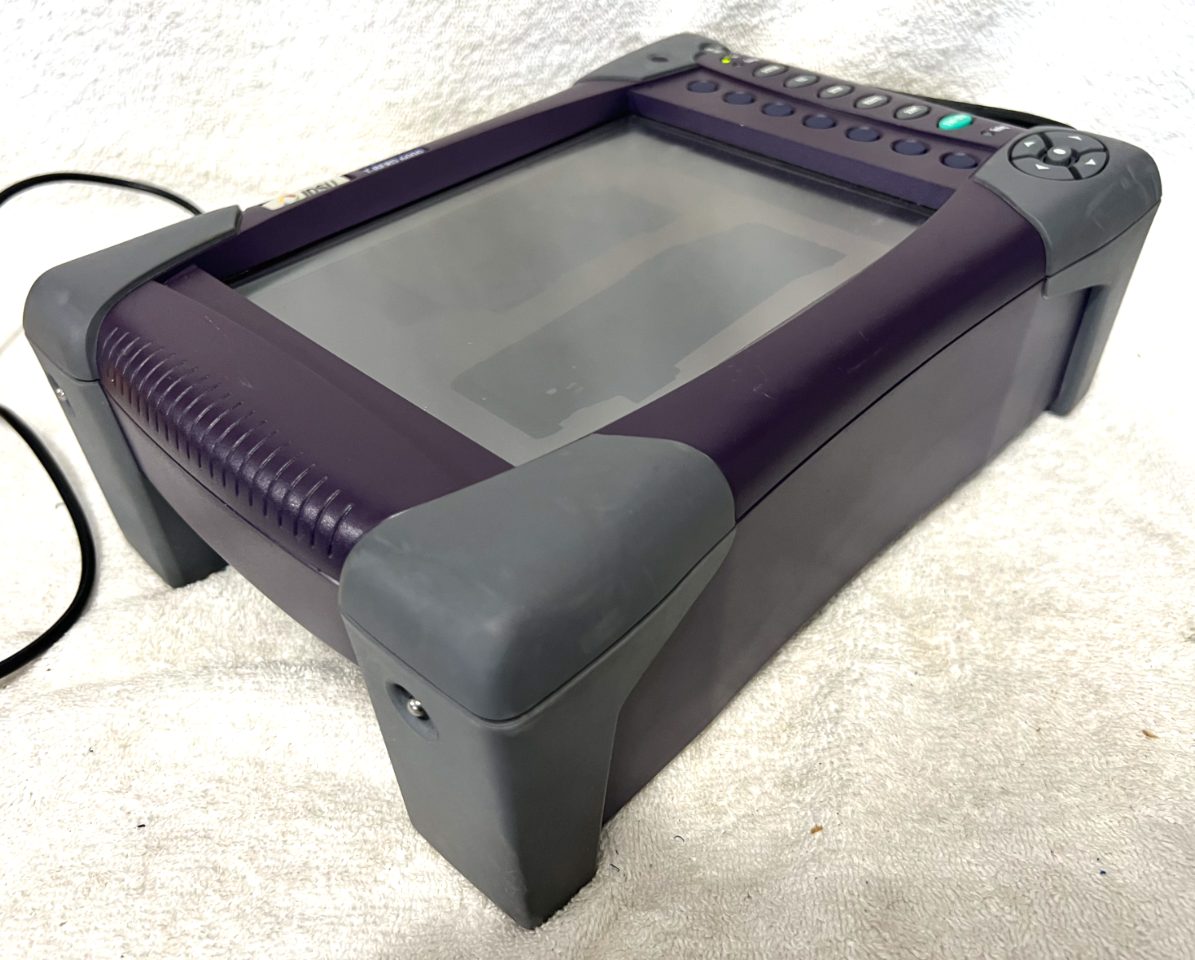

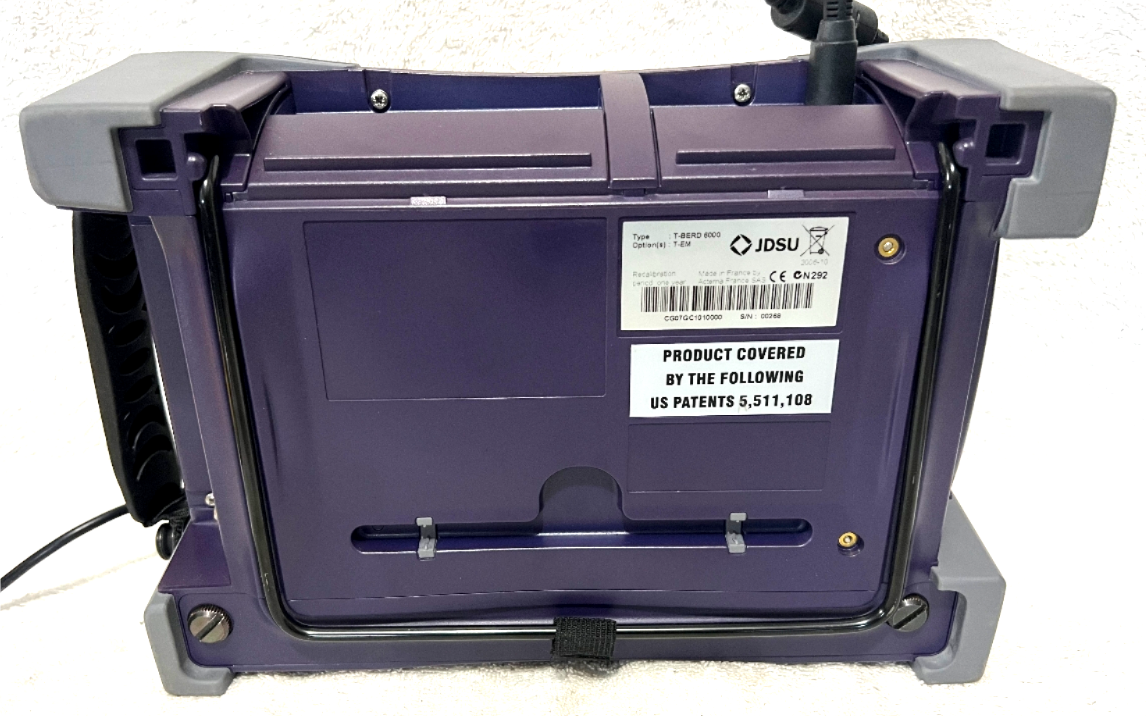

• Scratches and scuffs on the gray bumpers and housing
• Dust and handling marks
• Battery will not hold a charge and must be replaced

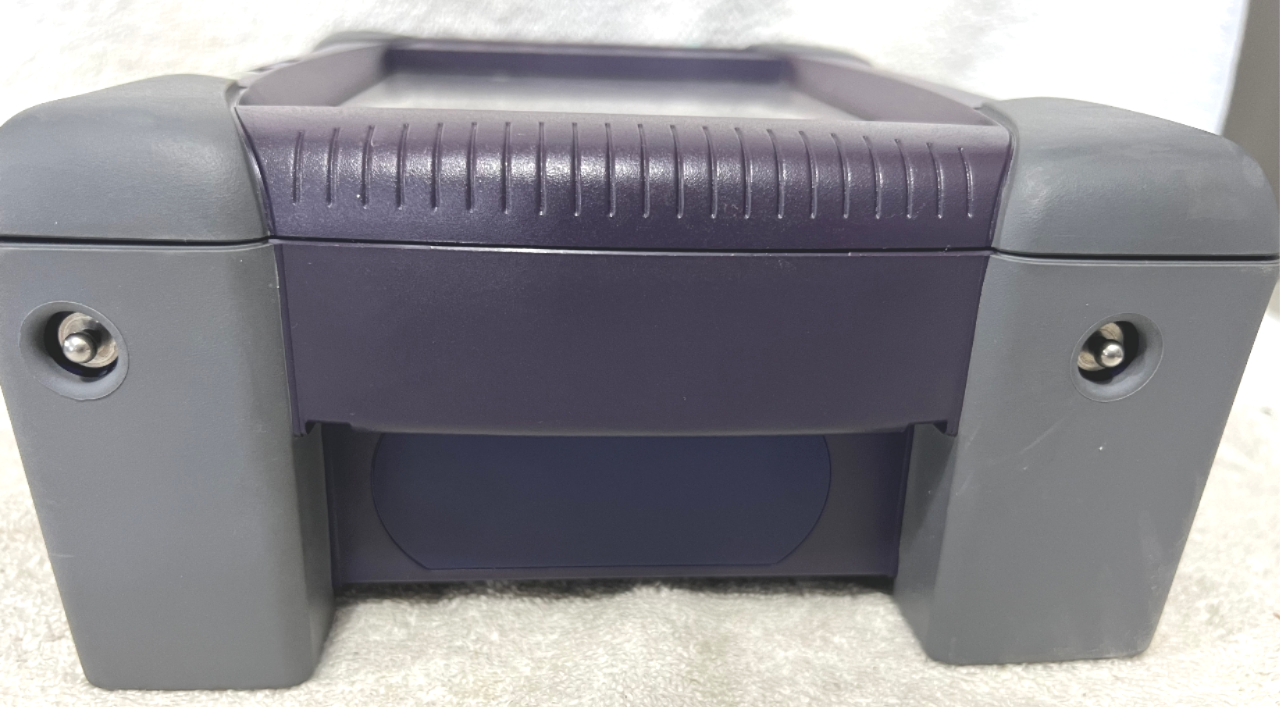

Please review the photos for cosmetics.

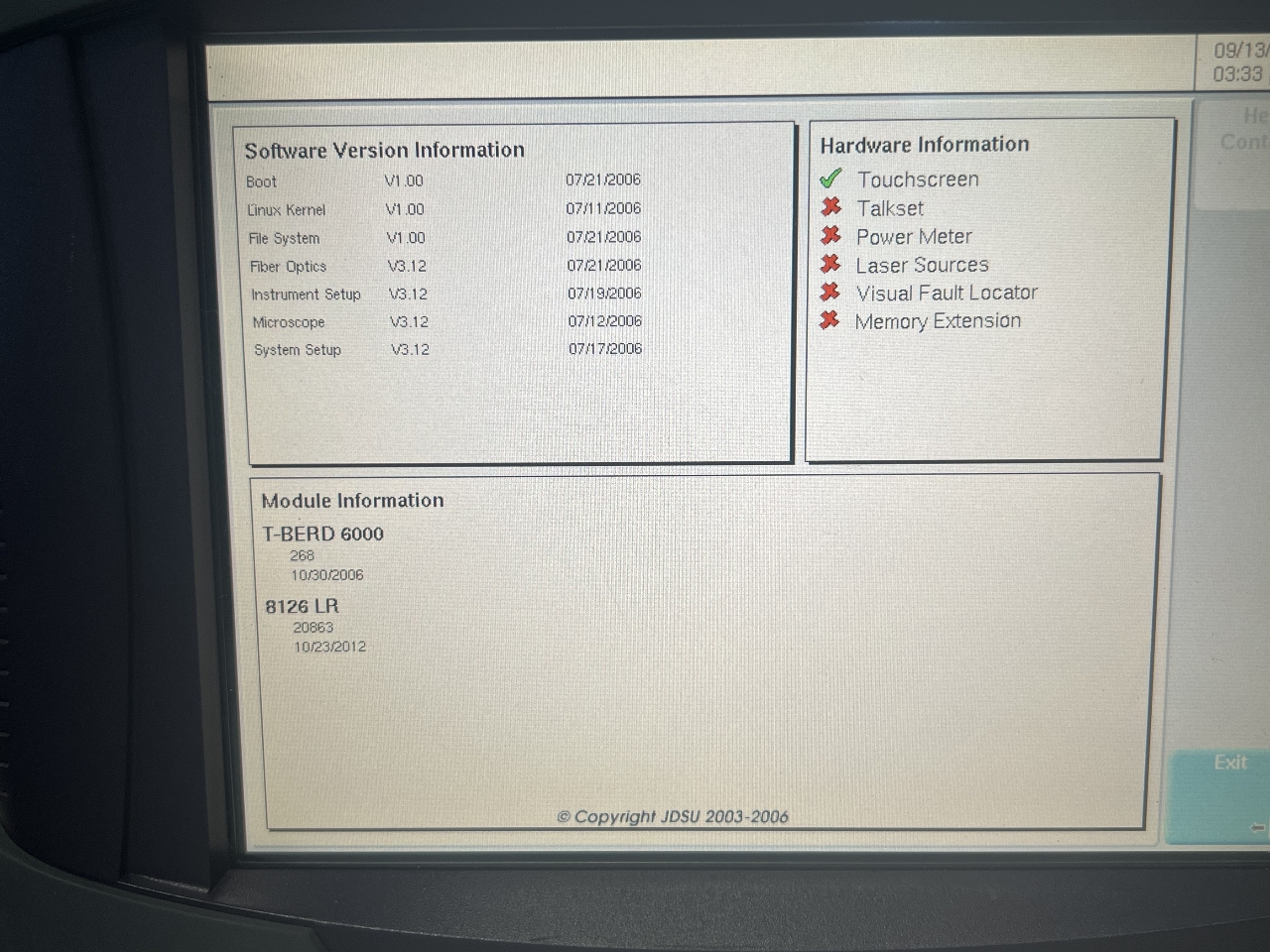

What works / what is installed System information screen shows:

• Mainframe: T-BERD 6000
• Module: 8126 LR
• Touchscreen: detected
• Fiber Optics software: V3.12

Hardware not present or not detected:

• Talkset
• Power meter
• Laser sources
• Visual fault locator
• Memory extension

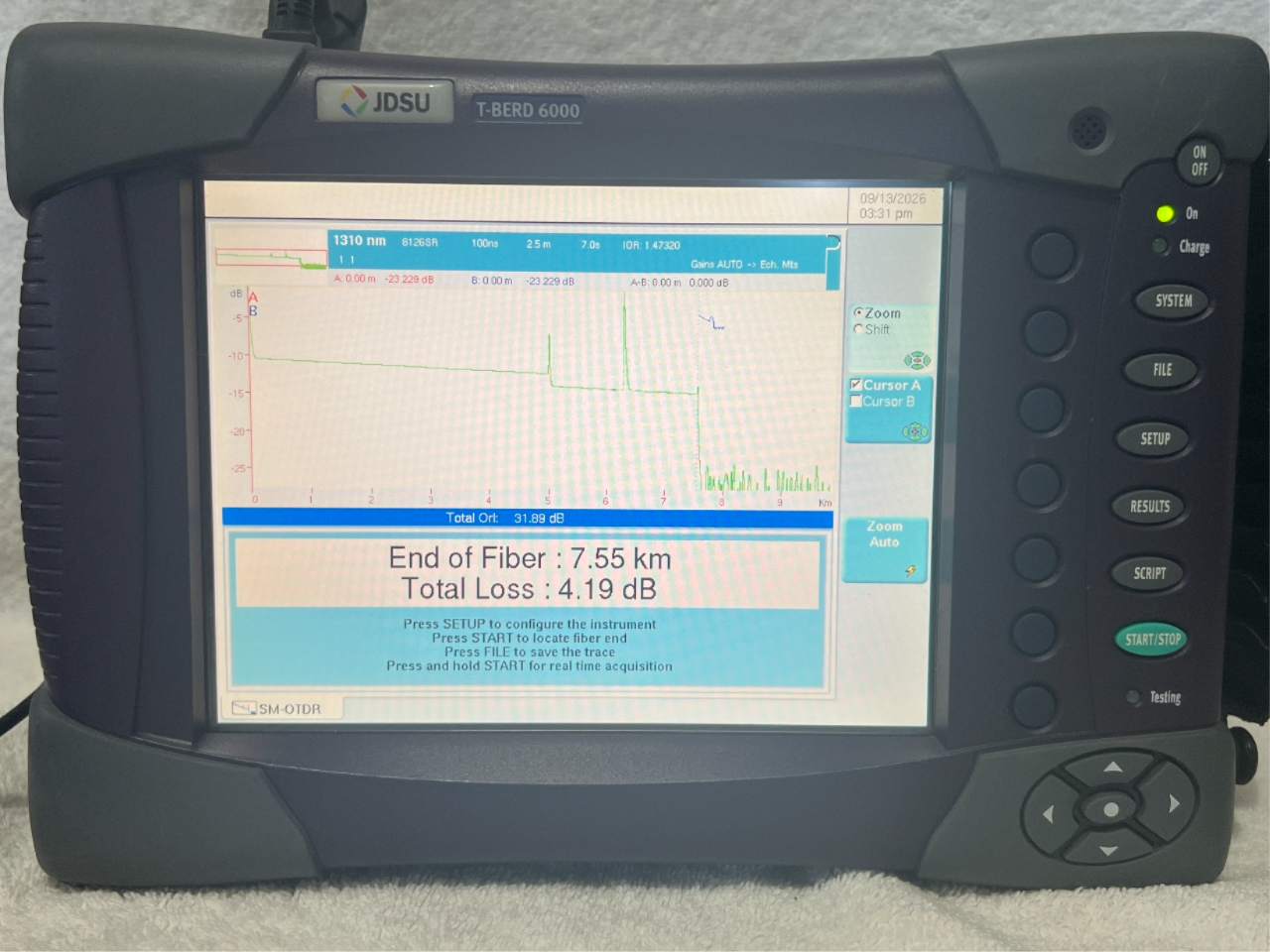

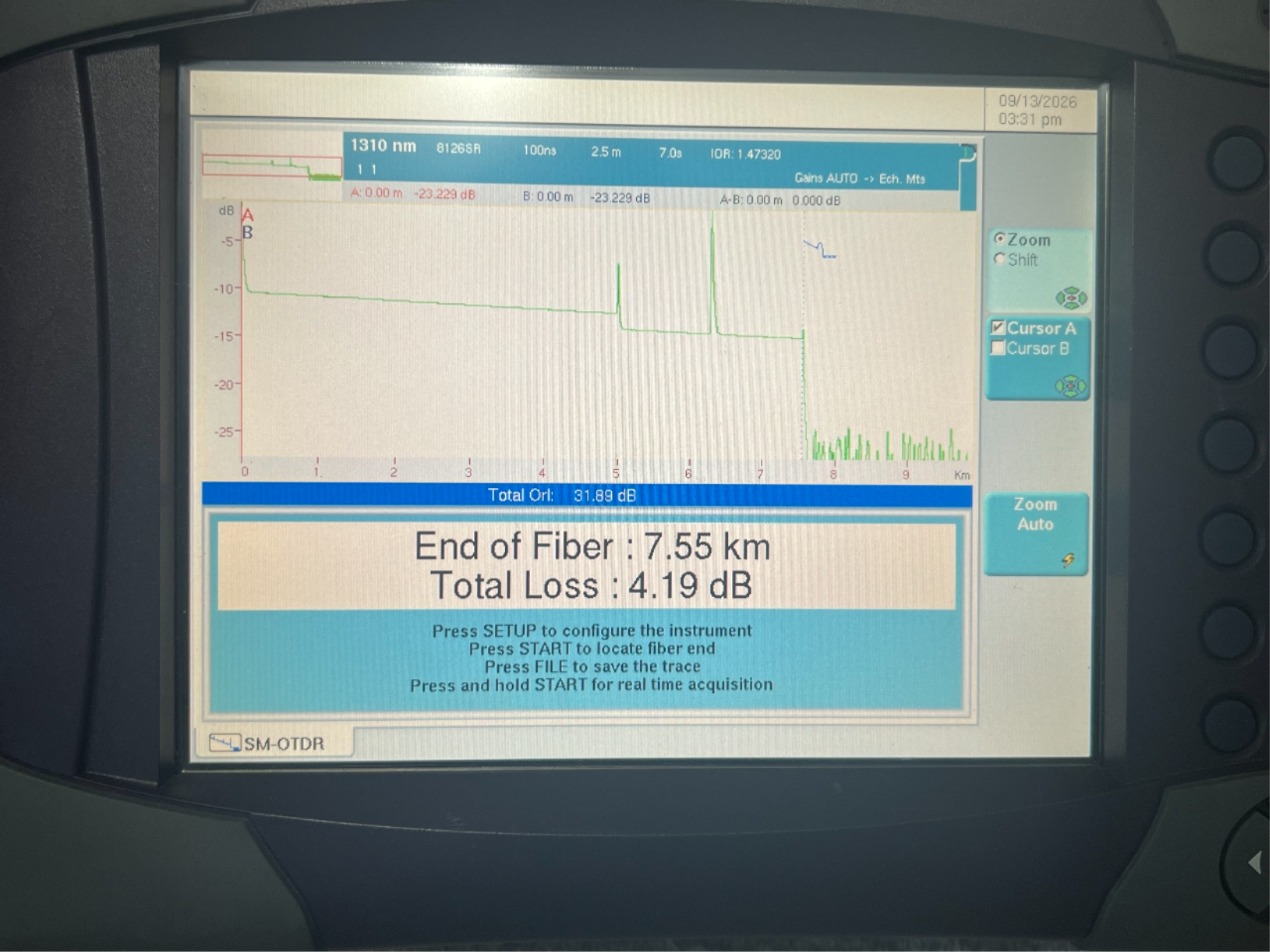

A sample singlemode OTDR trace at 1310 nm is shown in the photos (end of fiber about 7.55 km, total loss about 4.19 dB). That is a demonstration trace only, not a calibration certificate.

About the OTDR module 8126 LR is a long-range singlemode OTDR module typically used at 1310 nm and 1550 nm. Typical published specs for this family:

• Singlemode fiber
• Long-range testing for access, metro, and long-haul work
• Event dead zone around 0.8 m
• Dynamic range in the low-40 dB class
• Distance range up to hundreds of kilometers depending on settings

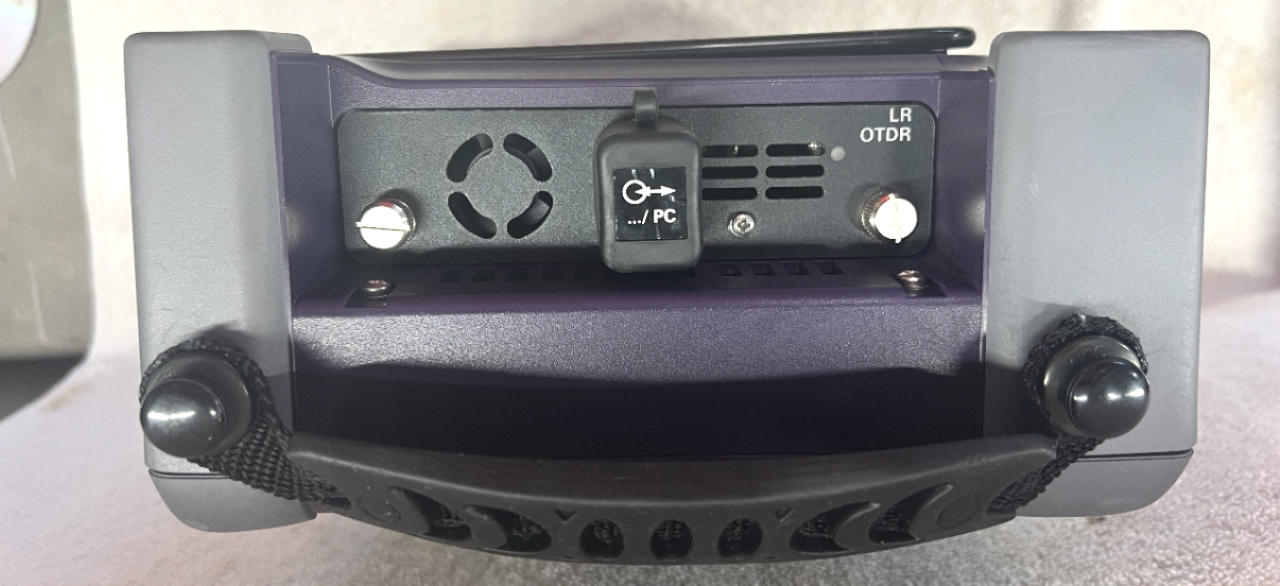

Side panel is labeled LR OTDR with one optical port. Confirm connector type from the photos before you bid if you need a specific APC or UPC adapter.

Mainframe features

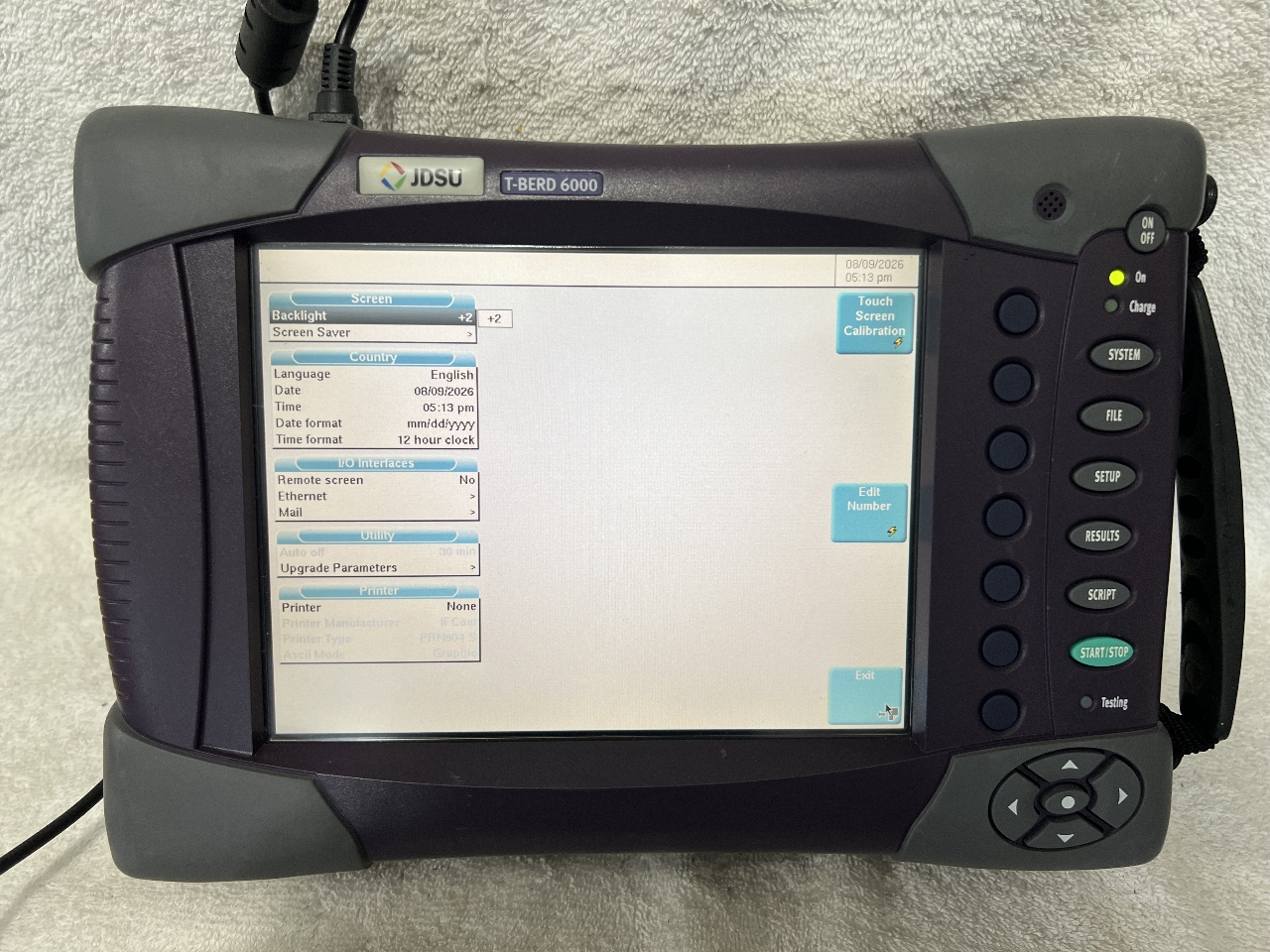

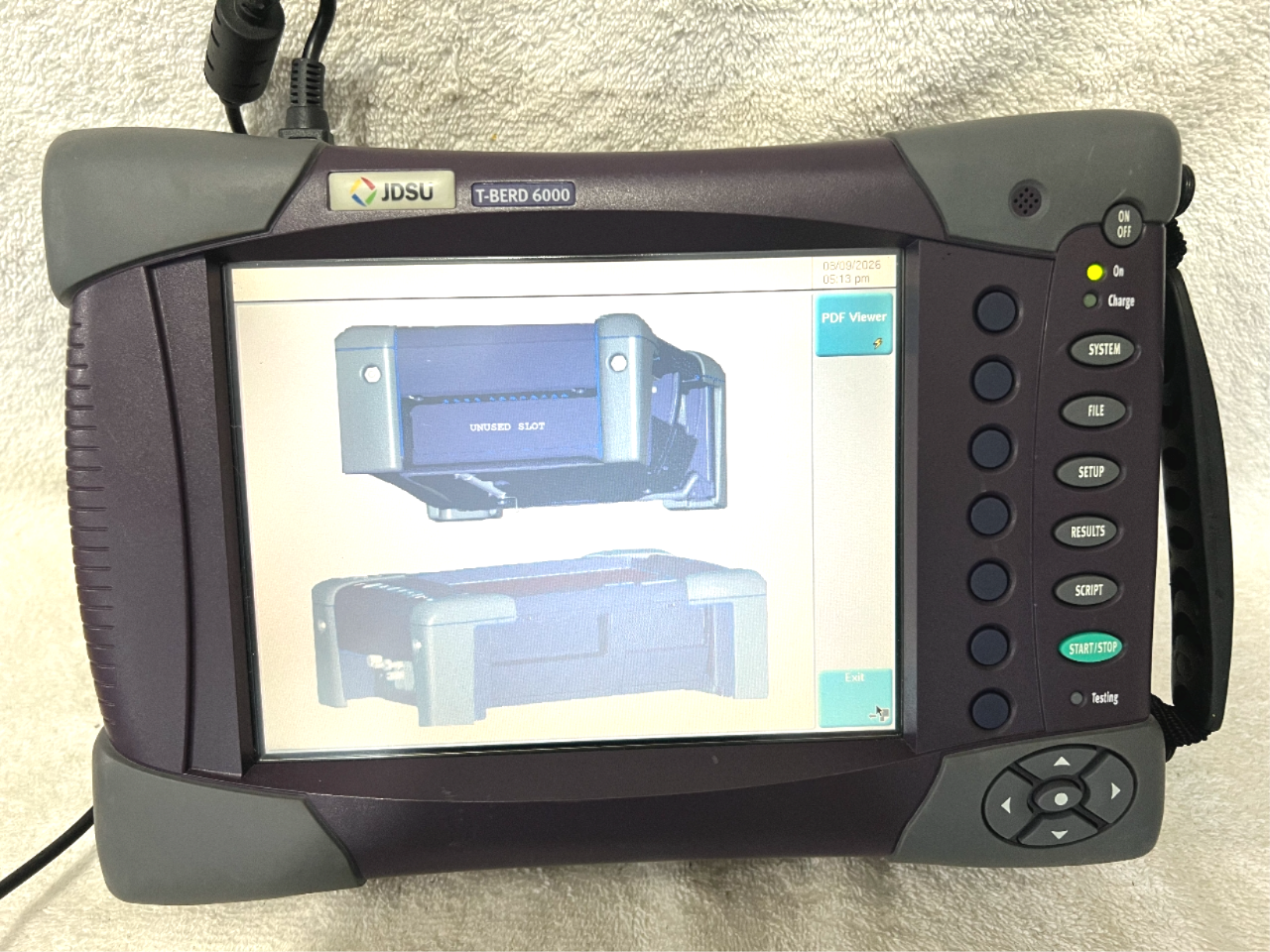

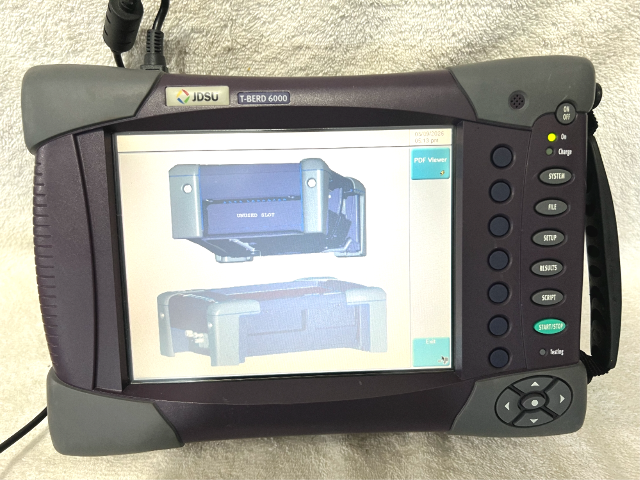

• Color touchscreen

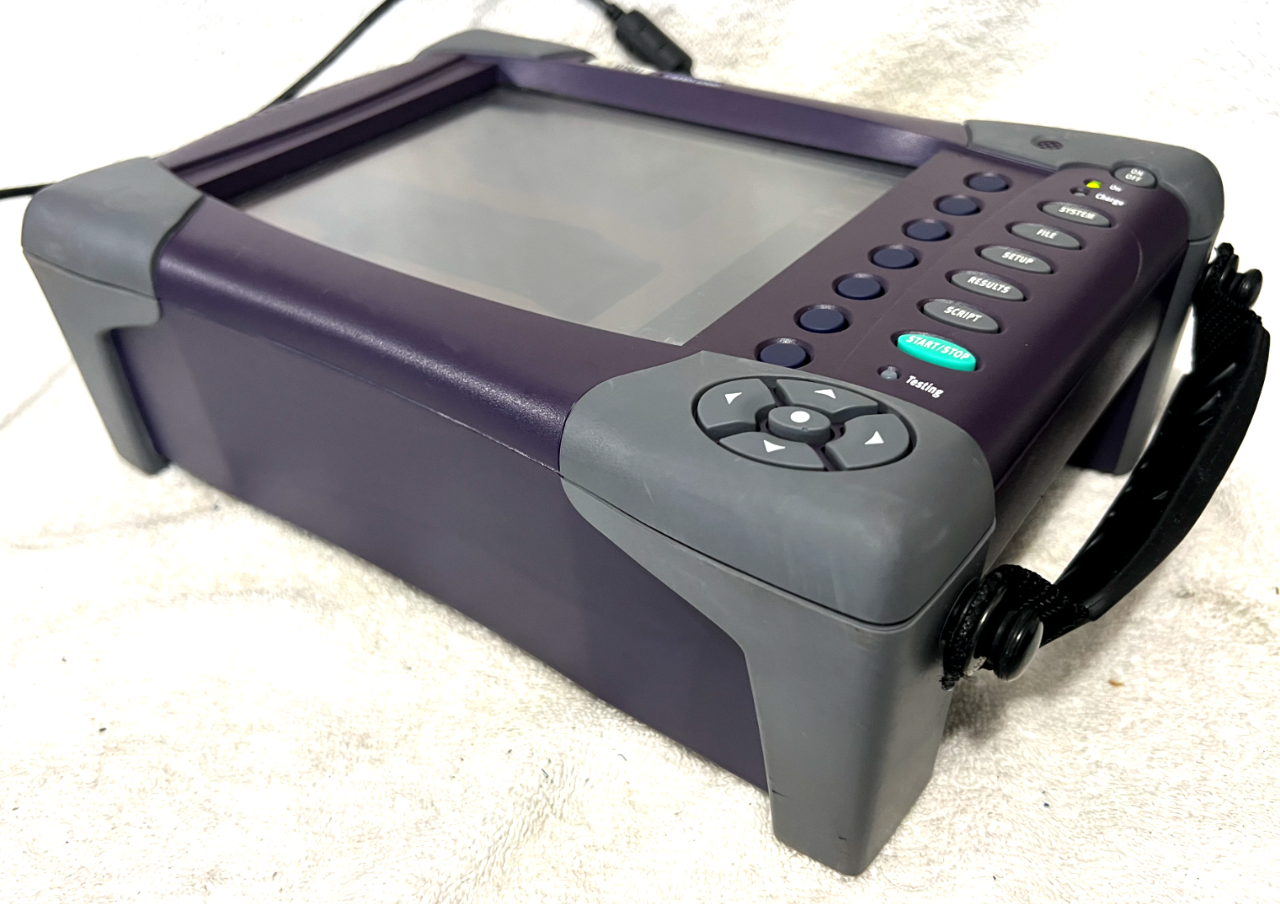

• Hard keys: SYSTEM, FILE, SETUP, RESULTS, SCRIPT, START/STOP
• Navigation pad
• File storage and results review

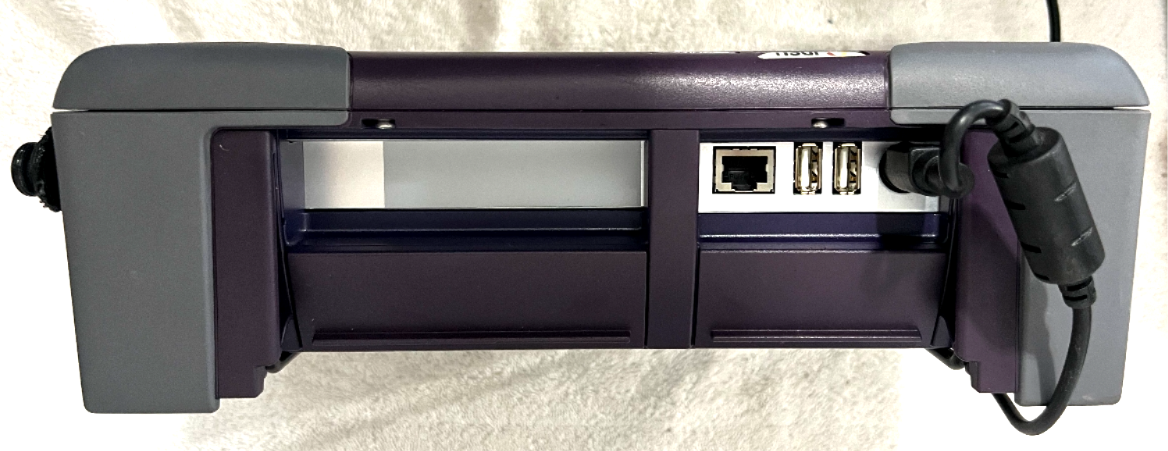

• USB / PC connection on the side
• Modular platform (this sale is the mainframe plus the installed 8126 LR module only)

Important This unit requires AC power until the battery is replaced. Factor battery cost and install time into your bid. Sold as a used working mainframe and OTDR module, not a calibrated lab instrument.

Good for fiber techs who already have a T-BERD / MTS 6000 charger and want a long-range 1310/1550 OTDR platform.

Sold as shown. Ask questions before buying.
